Engineered for rapid tunneling and hard rock drilling, the YT29A is our most powerful heavy-duty air leg rock drill. Get superior performance and reliability for your most demanding projects.

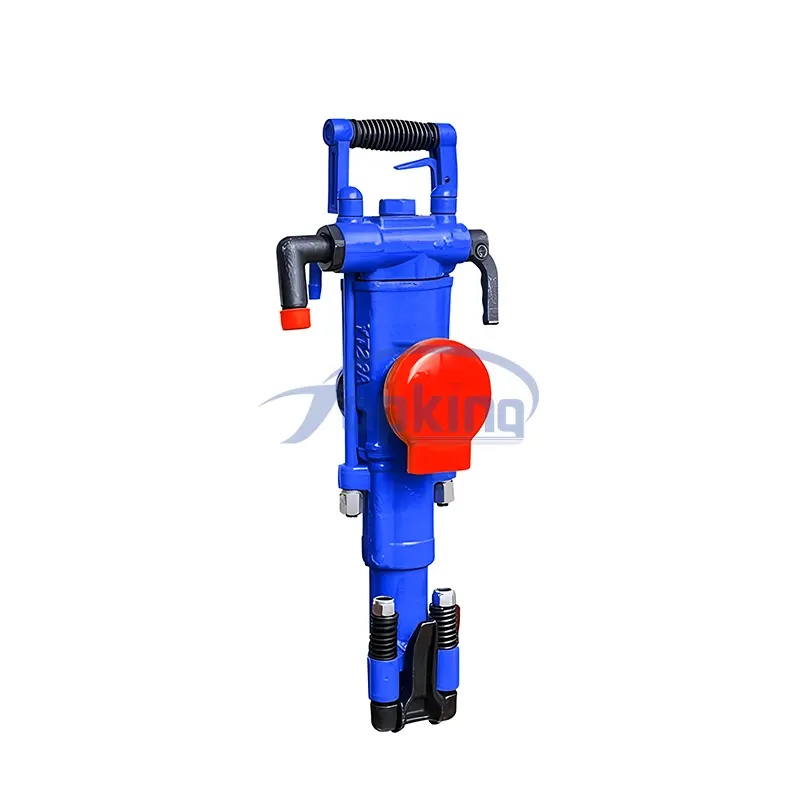

The YT29A Air-Leg Rock Drill is a new generation of high-efficiency pneumatic machinery designed for the most demanding drilling operations. It is the premier choice for roadway excavation and various rock drilling tasks in mines, railways, and highways. Engineered for power and reliability, the YT29A excels in drilling horizontal and inclined blastholes, particularly when paired with our FT160 or FT170 series air-legs.
Key Features of the YT29A Heavy-Duty Drill
● Superior Power & High Torque: With impact energy reaching up to 78J, the YT29A is engineered for high-performance drilling in hard and super-hard rock formations.
● Optimized for Tunneling & Drifting: The grouped control valve mechanism provides fast start-up and easy, responsive handling, making it the ultimate tool for roadway excavation.
● High-Efficiency Performance: A high drilling shock frequency and torque ensures rapid penetration, saving time and reducing operational costs on large-scale projects.
● Robust and Long-Lasting: Built for durability, the YT29A guarantees a long service life and reliable performance in the most challenging mining and construction environments.
Technical Specifications
YT29A Rock Drill
Weight
27
kg
Size (L×W×H)
659 x 248 x 205
mm
Cylinder Diameter
82
mm
Piston Stroke
60
mm
Working Air Pressure
0.40 ~ 0.63
Mpa
Impact Energy
≥ 78 (@0.63Mpa)
J
Air Consumption
≤ 88 (@0.63Mpa)
L/s
Impact Frequency
≥ 39 (@0.63Mpa)
Hz
Torque
≥ 20 (@0.63Mpa)
N·m
Air Hose Inner Diameter
25
mm
Water Hose Inner Diameter
13
mm
Drilling Diameter
34 ~ 45
mm
Max. Drilling Depth
5
m
Shank Size
H22 x 108±1
mm
Compatible Air-Legs & Oiler
Model FT160A (Standard)
Weight: 17 kg
Feed Length: 1338 mm
Model FT160B (Short)
Weight: 16 kg
Feed Length: 1098 mm
Model FT160C (Long)
Weight: 18 kg
Feed Length: 1490 mm
Model FT170
Weight: 18 kg
Feed Length: 1338 mm
Optional FY250 Oiler
Weight: 1.2 kg
Oil Capacity: 0.25 L
YT29A Rock Drill Parts & Accessories
We supply a full range of original spare parts for the YT29A air leg rock drill, ensuring your equipment maintains its high-performance standards and longevity.

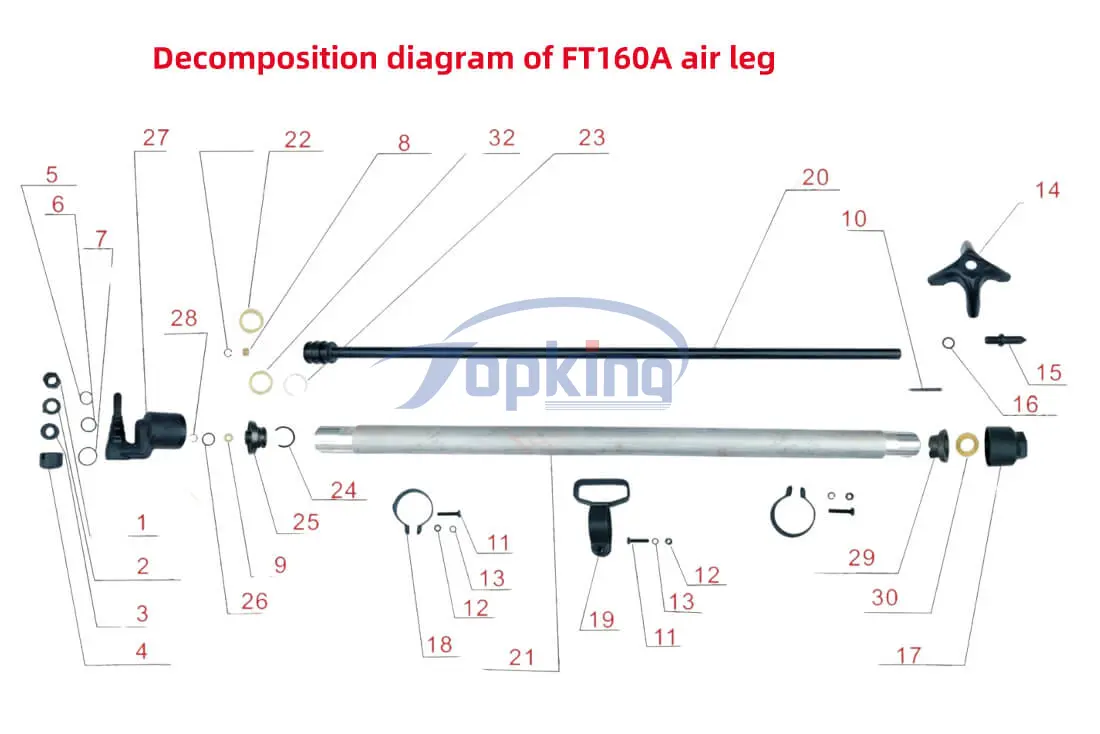

FT160A Air-Leg Parts Diagram
Detailed breakdown diagram for the compatible FT160A series air-leg.
