In field conditions across African gold mines and Middle Eastern quarries, equipment downtime is usually caused by misdiagnosis rather than major breakage. Based on 15 years of field feedback, this guide provides the definitive YN27C troubleshooting manual. We focus on the FEAP logic and verified technical standards like 0.6MPa compression to ensure your petrol rock drill operates at peak efficiency.
| High-Frequency Fault | Direct Solution |
|---|---|
| Engine Flooding (Excessive fuel) | Close needle valve; pull starter 20 times to clear cylinder. |
| Weak Ignition (No spark) | Set spark plug gap to 0.6mm – 0.7mm; check coil. |
| Low Pressure (<0.6MPa) | Replace piston rings; ensure fuel ratio is 12:1. |
*Field Tip: Always troubleshoot gas powered rock drill problems from outside-in to avoid unnecessary disassembly.

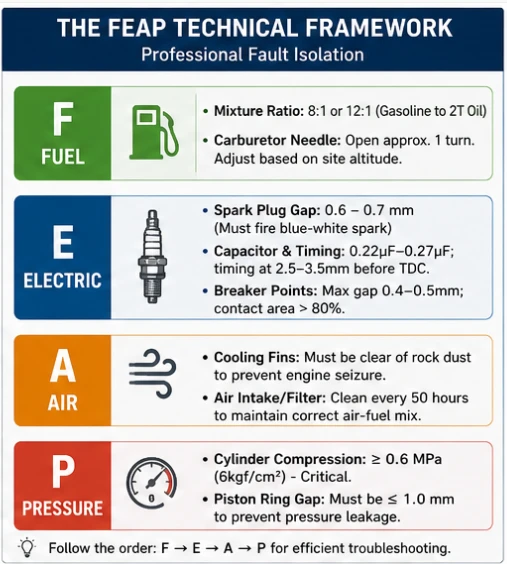

For any petrol rock drill repair, our engineers follow the FEAP (Fuel, Electric, Air, Pressure) framework. If your machine fails, run through these four pillars in order:
| Pillar | Inspection Component | Verification Standard |
|---|---|---|
| F - FUEL | Mixture Ratio | 12:1 (Gasoline to 2T Oil). Never use pure gas. |
| Carburetor Needle | Open approx. 1 turn. Adjust based on site altitude. | |
| E - ELECTRIC | Spark Plug Gap | 0.6 mm – 0.7 mm (Must fire blue-white spark). |
| Capacitor & Timing | 0.22μF–0.27μF; timing at 2.5–3.5mm before TDC. | |
| Breaker Points | Max gap 0.4–0.5mm; contact area > 80%. | |
| A - AIR | Cooling Fins | Must be clear of rock dust to prevent engine seizure. |
| Air Intake/Filter | Clean every 50 hours to maintain correct air-fuel mix. | |
| P - PRESSURE | Cylinder Compression | ≥ 0.6 MPa (6kgf/cm²) - Critical. |
| Piston Ring Gap | Must be ≤ 1.0 mm to prevent pressure leakage. |
Answer: Engine flooding is the most common reason a YN27C won’t start. It occurs when liquid fuel coats the spark plug electrodes, preventing ignition. Follow this professional recovery procedure:
Immediately close the fuel needle valve and push the throttle to "Full Open."
Remove the spark plug and pull the starter rope 15–20 times briskly to blow out liquid fuel from the cylinder.
Clean and dry the electrodes. Field Insight: A sharp ignition sound is normal when the engine fires successfully after the purge.
If your gas powered rock drill has problems with drilling speed (<250mm/min), the issue is usually in the transmission or pressure chamber:
Ruptured Accumulator: If the diaphragm is torn, the machine strikes with no "punch."
Clutch Slippage: Worn centrifugal shoes fail to transfer torque to the rod.
Incorrect Rod Size: Always use Hex 22 x 108 mm. Non-standard shanks lead to rotation gear failure.
Overheating is the leading cause of "Cylinder Scoring" in African gold mines. It is usually caused by dust-clogged cooling fins or a lean mixture. Continuous operation should never exceed 2 hours. Always stop to clean rock powder from the cylinder fins to allow proper heat dissipation.

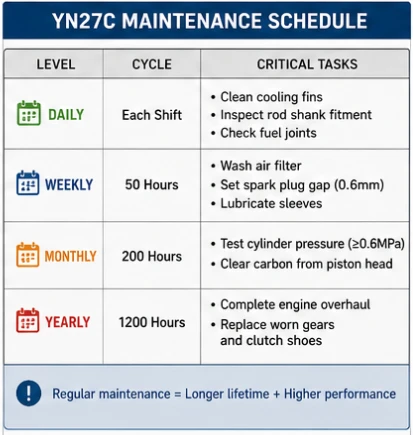

| Level | Cycle | Critical Task |
|---|---|---|
| Daily | Each Shift | Clean cooling fins; inspect rod shank fitment; check fuel joints. |
| Weekly | 50 Hours | Wash air filter; set spark plug gap (0.6mm); lubricate sleeves. |
| Monthly | 200 Hours | Test cylinder pressure (≥0.6MPa); clear carbon from piston head. |
| Yearly | 1200 Hours | Complete engine overhaul; replace worn gears and clutch shoes. |

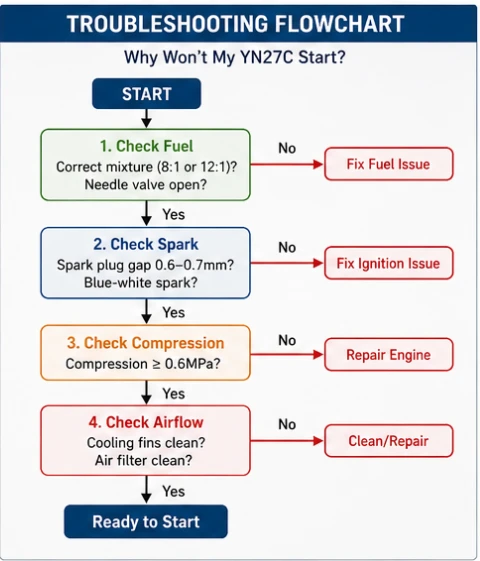

If you are struggling with petrol rock drill repair, run through this final checklist for a rapid fix:
[ ] Fuel: Ratio 12:1? Needle valve open 1 turn? Fuel fresh?
[ ] Spark: Gap 0.6mm – 0.7mm? Blue-white color? Plug dry?
[ ] Compression: Pressure ≥0.6MPa? Piston rings intact?
[ ] Air: Cooling fins clear of rock dust? Filter clean?
Q: Can I use standard gasoline in my rock drill?
A: Yes, use 90+ octane gasoline mixed with 2-stroke oil. The 12:1 ratio is vital for internal lubrication.
Q: Where can I buy genuine YN27C spare parts?
A: ExpandAg stocks a massive inventory of cylinders, pistons, and spark plugs. Check our YN27C product page for worldwide shipping.
Q: How do I adjust the YN27C carburetor for high-altitude mining (above 3,000m)?
A: At high altitudes, the air is thinner, causing the mixture to become too "rich." You must adjust the carburetor needle valve to lean out the fuel delivery. Turn the needle valve slightly clockwise until the engine reaches a stable, crisp RPM. This prevents carbon buildup and power loss common in mountainous mining sites in Peru or Central Asia.
Q: What is the best way to start the YN27C rock drill in extremely cold winter conditions?
A: In sub-zero temperatures, fuel atomization is poor. First, ensure you are using a high-quality, low-viscosity 2-stroke oil. Close the choke completely for the first 2-3 pulls. If it still fails, remove the spark plug and slightly pre-warm it (carefully) to help ignite the cold mixture. Once the engine fires, let it idle for 3-5 minutes to establish a proper oil film before full-load drilling.
Q: How should I store the YN27C if it won't be used for more than 3 months?
A: Long-term storage requires "pickling" the engine. 1. Drain all fuel from the tank and carburetor to prevent gumming. 2. Remove the spark plug, pour about 30ml of clean 2-stroke oil into the cylinder, and pull the starter rope slowly 4-5 times to coat the cylinder walls. 3. Reinstall the spark plug and store the machine in a dry, ventilated area. This prevents internal rust and ensures an easy start next season.
