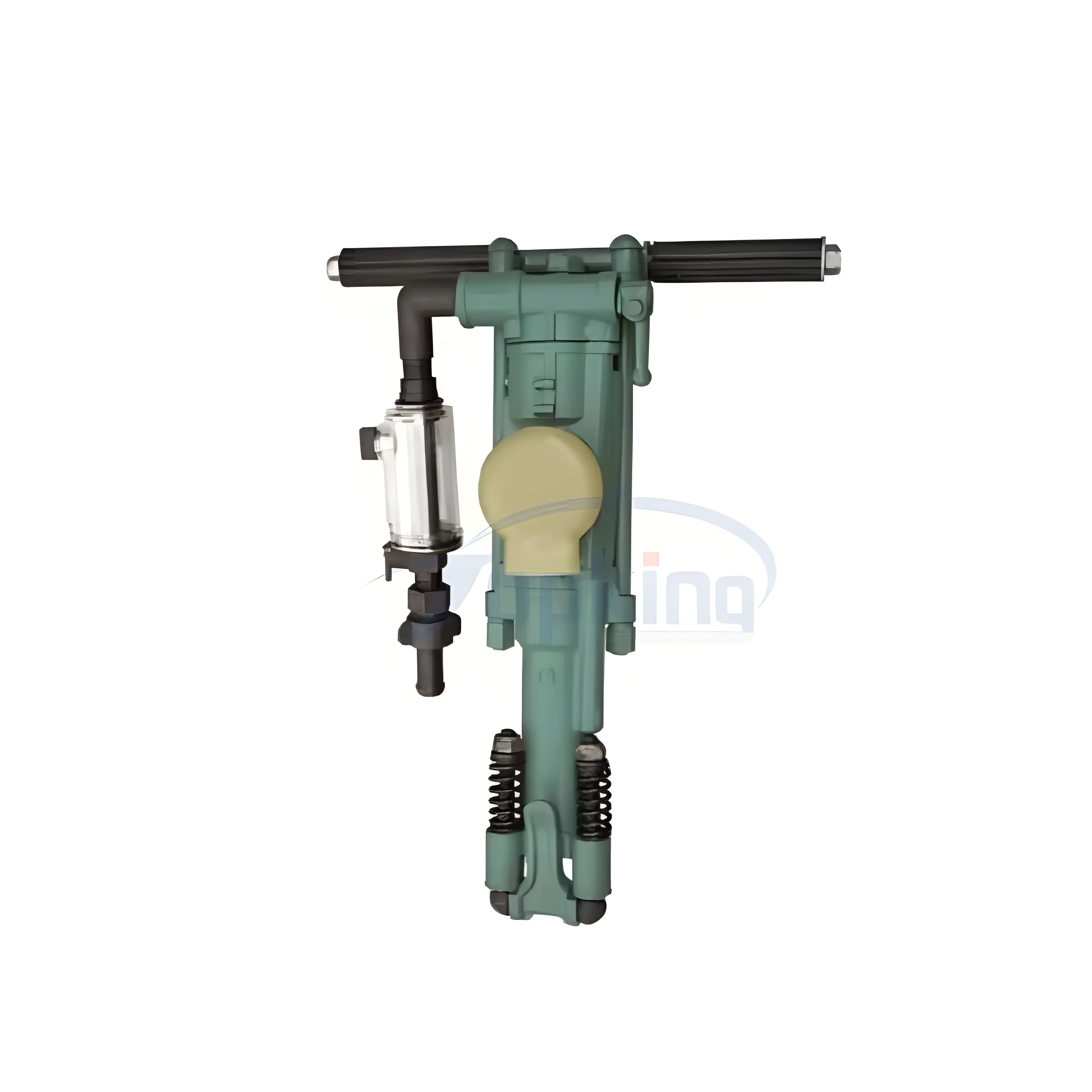

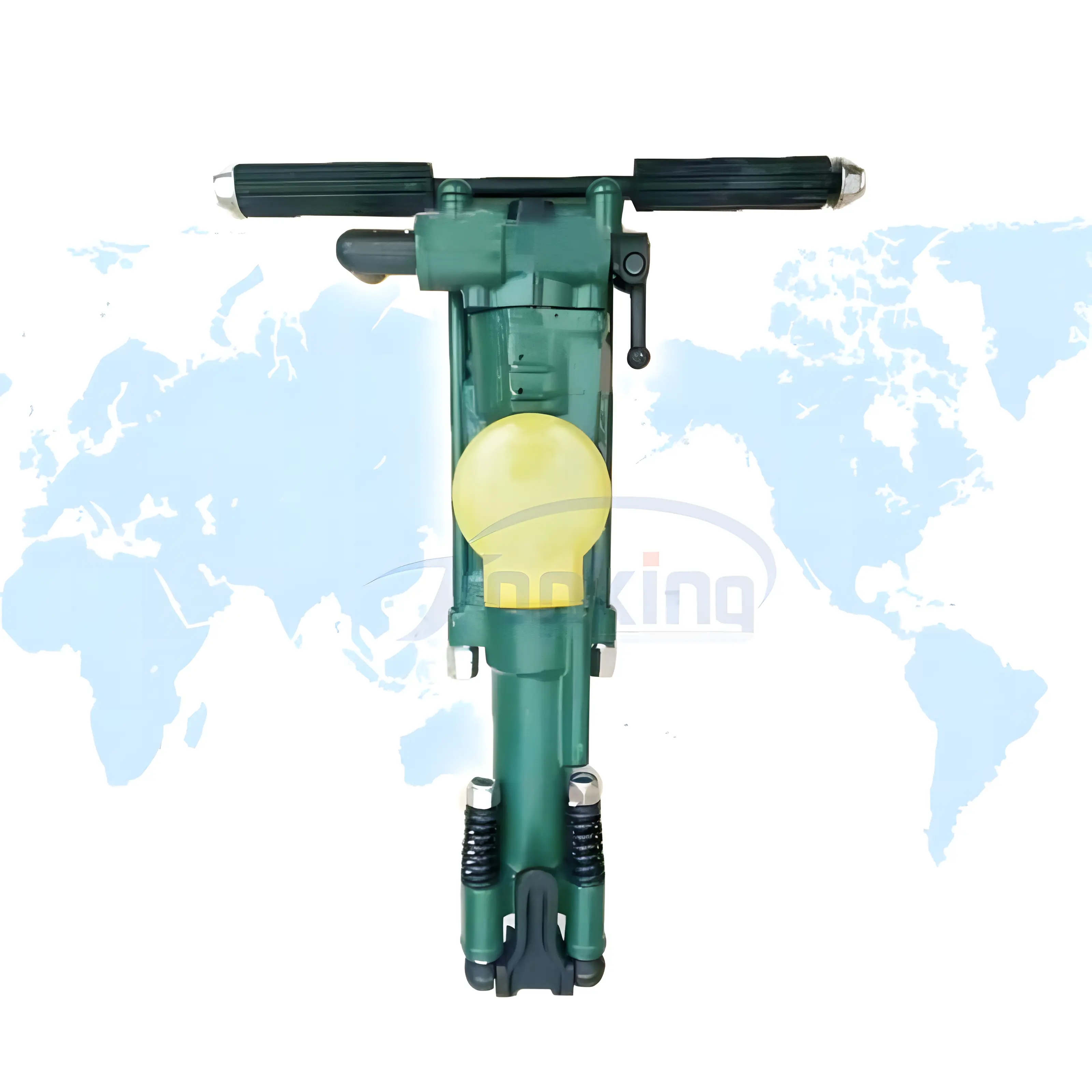

Y24 Rock Drill Hand Held Rock Drill
The hand held rock drill Y24 is a light but robust jackhammer for dry drilling of rocks, and it is developed to perform light to medium construction and plant maintenance work, like the demolition of floor, pavement, bridge, asphalt, frozen ground, masonry wall, etc.
Feature
This pneumatic rock drill is manufactured from alloy steel forgings to enhance its durability, and its four-bolt back head enables it to work normally even under extreme conditions. In addition, the FY200B lubricator/oiler provides continuous lubrication.
Technical Data of Hand Held Rock Drill Y24
Weight | ≈24 | KG |
| Length | 604 | mm |
Cylinder block diameter | 70 | mm |
Piston stroke | 70 | mm |
Working pressure | 0.4~0.63 | MPa |
Impulse frequency | ≥27 | Hz |
Air consumption | ≤50 | L/s |
Tracheal inner diameter | φ19 | mm |
Drill head diameter | φ34~42 | mm |
Bit tail specification | 22X108±1 | mm |
Air pressure is 0.4 mpa performance parameters | ||
FY200B type oiler | ||
CAPACITY | 200 | mm |

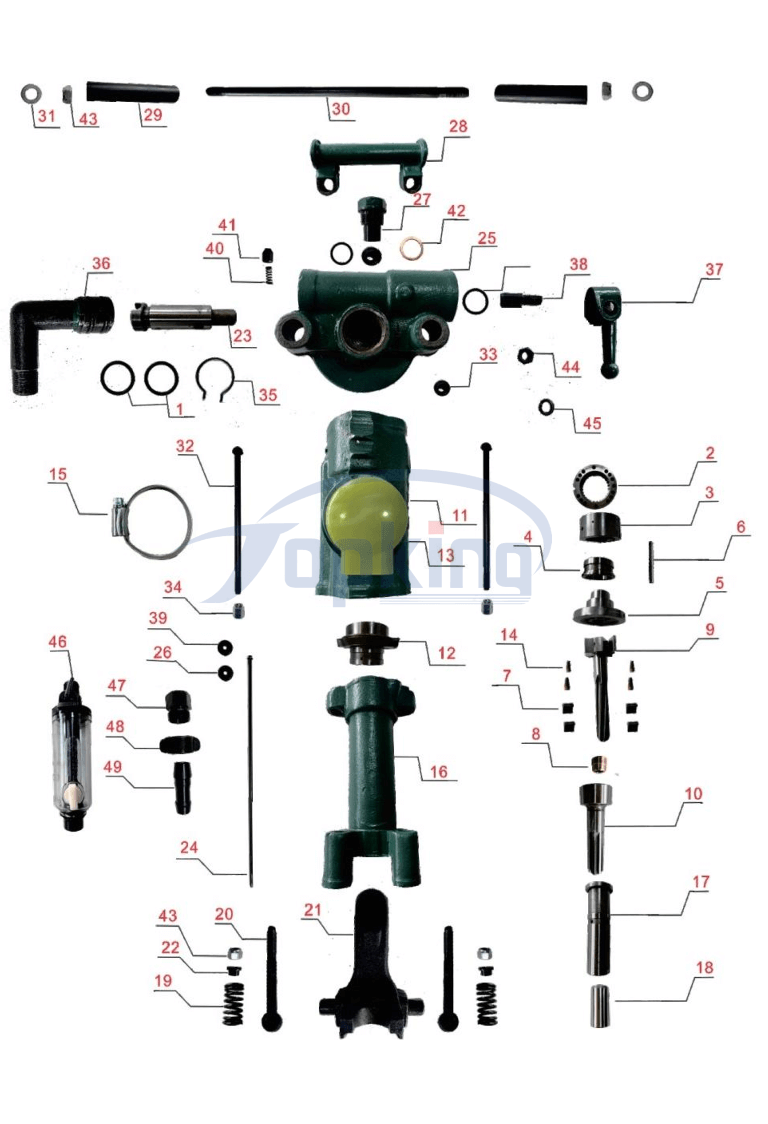

Y24 portable jack hammer accessories
